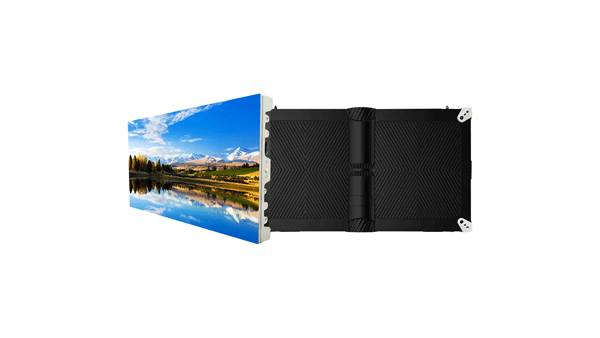

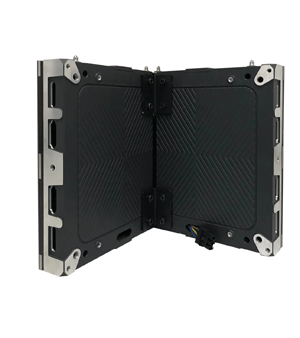

LEDMan Indoor Fixed LED Display M Series

Brand:

  • LEDman
Availability: In Stock
SKU: M-Series Categories: , ,

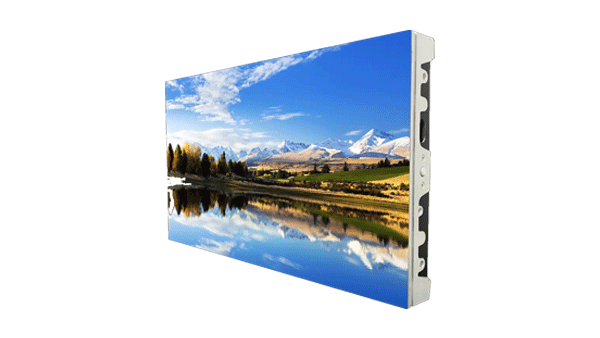

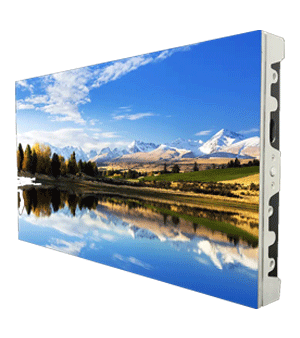

The Ledman M Series LED panel is suited to ultrafine and fine pitch applications such as meeting rooms, boardrooms, auditoriums, exhibitions and superior quality billboards.

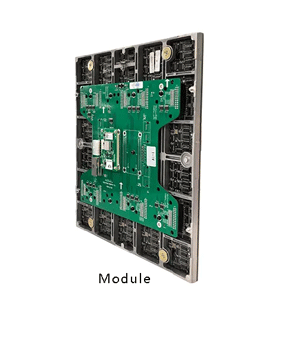

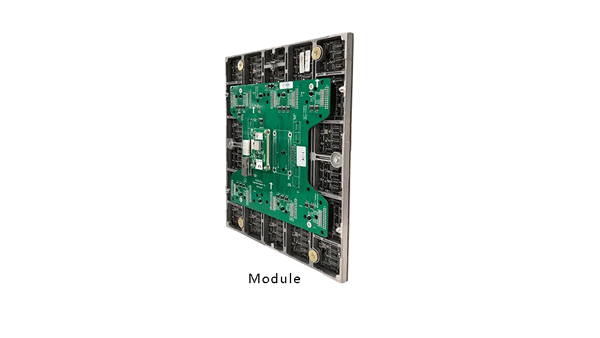

The M Series is built with COB technology (Chip On Board) which is more robust than traditional surface mount LED’s as they are directly bonded to the circuit board. Furthermore, the LED’s are encased in a resin coating making the panels very durable and very smooth making lines between panels almost impossible to distinguish.

  • COB Technology
  • Pixel Pitch1.1mm to 1.9mm
  • Front Service
  • Durable & moisture resistant



SPECIFICATIONS



Model

M1.1

M1.2

M1.5

M1.9

Pixel Pitch (mm) 1.16 1.26 1.58 1.9
Size (mm) 304*342*57.5
608*342*72
304*342*57.5
608*342*72
304*342*57.5
608*342*72
304*342*57.5
608*342*72
Pixel (dot) 260*294
520*294
240*270
480*270
192*216
384*216
160*180
320*180
Material Die cast Aluminum Die cast Aluminum Die cast Aluminum Die cast Aluminum
Weight (kg) 4.1
7.2
4.1
7.2
4.1
7.2
4.1
7.2
Brightness(nit) 600 600 600 600
Gray scale (bit) 13 13 13 14
Refresh rate(Hz) 3000 3000 3000 3840
Power Max./Avg. (W/㎡) 480/160 450/150 450/150 450/150
Installation/Maintenance Front Front Front Front
Certification CE ETL FCC RoHS CE ETL FCC RoHS CE ETL FCC RoHS CE ETL FCC RoHS
