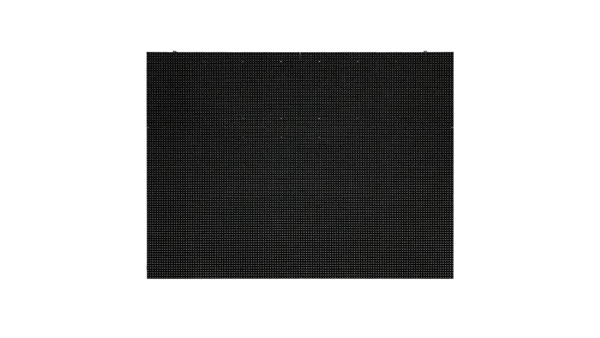

LEDMan Outdoor Fixed LED Display N Series
Brand:
Availability:
In Stock
Delivery: 30 working days

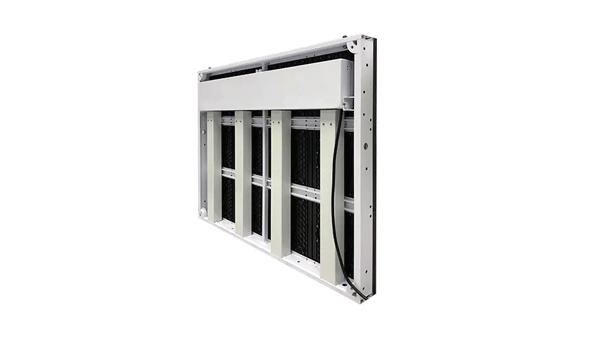

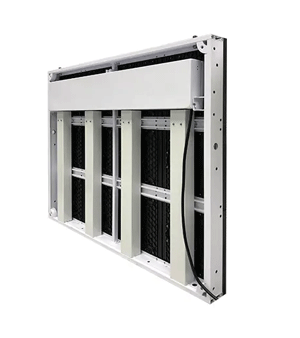

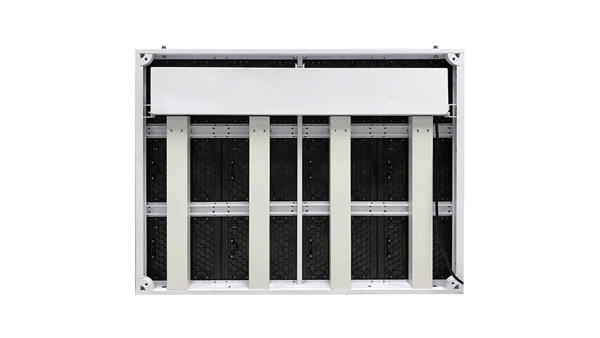

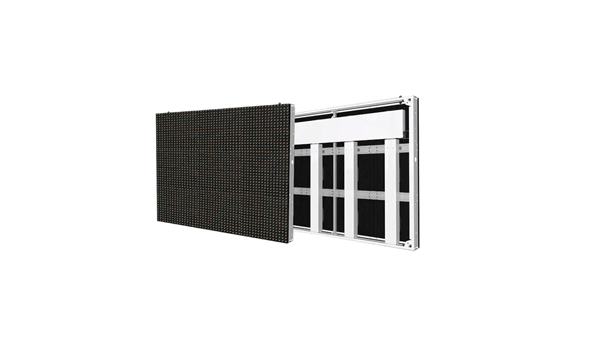

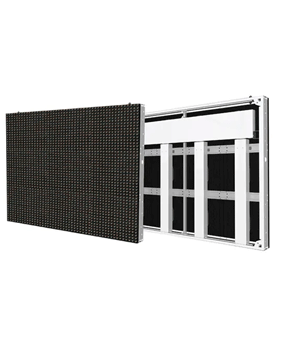

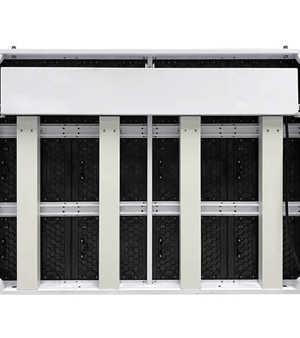

The N series is available in a wide variety of pixel pitches suitable for every exterior install requirement. The panels can be installed and maintained both from the front and the rear making installation simple & easy. The N Series enclosures are IP rated with IP65 to the front for maximum protection and IP54 to the rear. They are sealed against insects and provide maintenance free operation with no fans required.
- SMD Technology
- Pixel Pitch 4.4mm to 16mm
- Front & Rear Service
- High Brightness
- IP65/IP54 (front/rear)
SPECIFICATIONS
Model | N4 | N5 | N6 | N8 | N10W | N10 | N16 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 4.44 | 5.7 | 6.66 | 8.88 | 10 | 10.66 | 16 |
| Size (mm) | 960*960*96 | 1280*960*96 | 1280*960*96 | 1280*960*96 | 1280*960*96 | 1280*960*96 | 1280*960*96 |
| Pixel (dot) | 216*216 | 224*168 | 192*144 | 144*108 | 128*96 | 120*90 | 80*60 |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight (kg) | 32.5 | 31 | 31 | 31 | 31 | 31.7 | 31.7 |
| Brightness(nit) | 5500 | 6500 | 6500 8500 | 6500 8500 | 6500 8500 | 8000 | 8500 |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 16 |
| Refresh rate(Hz) | 3840 | 1920 | 1920 | 1920 | 1920 | 1920 | 3840 |
| Power Max./Avg. (W/㎡) | 720/240 | 750/250 | 750/250 | 750/250 | 750/250 | 380/126 | 410/136 |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Installation/Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
